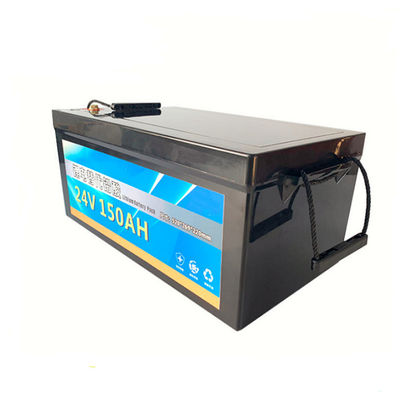

3.6KWh Campervan Leisure 24V 150Ah Lithium Ion Battery Deep Cycle

3.6KWh Campervan Leisure 24V 150Ah Lithium Ion Battery Deep Cycle

3.6KWh Campervan Leisure 24V 150Ah Lithium Ion Battery Deep Cycle
3.6KWh Campervan Leisure 24V 150Ah Lithium Ion Battery Deep Cycle 3.6KWh Campervan Leisure 24V 150Ah Lithium Ion Battery Deep Cycle 3.6KWh Campervan Leisure 24V 150Ah Lithium Ion Battery Deep Cycle 3.6KWh Campervan Leisure 24V 150Ah Lithium Ion Battery Deep Cycle

Large Image :  3.6KWh Campervan Leisure 24V 150Ah Lithium Ion Battery Deep Cycle

Product Details:
Place of Origin: China
Brand Name: GUANYU
Certification: MSDS
Model Number: GUANYU-FF128
Payment & Shipping Terms:
Minimum Order Quantity: 10 packs
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 3-6 weeks
Payment Terms: 30% before production,70% before delivery
Supply Ability: 10000 packs per month
Detailed Product Description
Nominal Voltage:: 25.6V Typical Capacity:: 150Ah
Max Continuous Discharge Current:: 150A Peak Discharge Current:: 180A
Nominal Charge Voltage:: 29.2V Discharge Cut-off Voltage:: 16~20V
Max Charge Current:: 30A Work Temperature:: 0℃ - 45℃
Cycles Life@ 100% DOD:: ≥2000 Weight:: 25kg
Dimension:: Customizable Material:: Lithium Iron Phosphate
High Light:: Rechargeable Lithium Iron Phosphate Battery, Industrial Forklift Battery
High Light:

3.6KWh Campervan Leisure Battery


Deep Cycle Campervan Leisure Battery


24V 150Ah Lithium Ion Battery

Powerful Prismatic Lithium Batteries , 24V 150AH Battery Forklift Truck


The model battery can be replaced for:

Wind Energy Storage batteries, Motorcycles batteries, cars batteries, buses batteries, trucks batteries, yachts batteries, Launch batteries, ships batteries, racing cars batteries, Tricycles batteries, Pedicab batteries, three wheeler vehicle batteries, Limousine batteries, Telecom Stations batteries, Bank Power supply systems batteries, Solar Energy Storage batteries, Hospital Power Supply system batteries, Home Power System batteries, etc.




- Metal housing design is fiexible
- Long life span
- LCD smart monitor
- Automatic warnning alarm
- Environmental friendly



Powerful Prismatic Lithium Batteries , 24V 200AH Battery Forklift Truck 0


1. General Information

This specification defines the performance of the rechargeable LiFePO 4 battery pack GUANYU-FF054 produced by Shenzhen Guanyu New Energy Technology Co., Ltd., and describes the type, performance, technical characteristics, warnings and warnings of the battery pack


2. Specification(@Battery initial Temp25±5℃)

NO. Items Criteria Remarks
2.1 Rated Capacity 150Ah
Minimum Capacity 145Ah
2.2 Energy 3.6KWh
2.3 Nominal Voltage 25.6V
2.4 Outgoing Voltage ≥25.6V
2.5 Internal resistance ≤20mΩ
2.6 Limited charge voltage 29.2±0.2V
2.7 Floating charge voltage 27.6±0.2V
2.8 Standard charge current 20A
2.9 Maximum charge current 30A
2.10 Standard discharge current 100A
2.11 Maximum discharge current 150A/Continuous for 1 hour
2.12 Pulse discharge current 180A/Continuous for 15 min
2.13 Discharge cut-off voltage 20.0V



Dimension customizable
2.15 Weight Approx: 25Kg



Operating Temperature Charging:0~45℃
Recommended operating temperature:15℃~35℃
2.17 Self-discharge rate Residual capacity:≤3%/ month;≤15%/years
Reversible capacity: ≤1.5%/ month;≤8%/years
2.18 Storage Temperature & Humidity Range Less than 1 month:-20℃~35℃,45%RH~75%RH
Less than 3 months:-10℃~35℃,45%RH~75%RH

Recommended storage environment:


Long time storage:

If the battery need be stored for a long time, the voltage should be 25.6V(50%SOC), and stored in the condition as storage proposal. It need at least one charge & discharge cycle every six months


3. Test Conditions

3.1 Standard Test Conditions

3.1.1 Unless otherwise specified, all performance tests is required conducted at temperature 25℃±2℃, Humidity less than 45%~75%RH.

3.1.3 Unless otherwise specified, the tested product is required unused within two month after outgoing.

3.2 Standard Charge Mode

"Standard Charge" means at 25±2℃ charge to limit voltage with 0.33C constant current, then charge with constant voltage until current less than 0.02ItA.

3.3 Quick Charge Mode

" Quick Charge" means at 25±2℃ charge to limit voltage with 0.5 C constant current, then charge with constant voltage until current less than 0.02ItA.

3.4 Standard Discharge Mode

"Standard Discharge" means at 25±2℃ discharge to the cut-off voltage with 0.33C current.

3.5 Quick Discharge Mode

"Quick Discharge" means discharge to the cut-off voltage with 0.5C current.


4. Product Performance

NO. Items Criteria Testing method
4.1 Rated Capacity 150Ah Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 120 minutes, you can stop and define the Discharging current*time value (Ah) as battery capacity.
4.2 Minimum Capacity 145Ah
4.3 Internal resistance ≤20mΩ 50% battery SOC state frequency of 1 KHZ ac resistance tester

Cycle life


≥2000cycle Discharge with the current of 0.33C until it can’t discharge, and then rest it for 1h. Charge the battery following CC(0.33C)/CV(14.6V) mode to full capacity, and then rest it for 1h. Repeat above process until full charged capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.

Discharge Temperature


-20℃ ≥70% At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage and record charge capacity. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage.
-0℃ ≥80%
25℃ ≥100%
55℃ ≥95%
4.7 Charge Retention ability



Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.
Recovery capacity≥90%


5. Protective circuit specification

The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.


NO. Items Content Specification
5.1 Over charge Over-charge protection for each cell 3.65±0.03V
Over-charge release for each cell 3.50±0.05V
Over-charge release method Under the release voltage
5.2 Over discharge Over-discharge protection for each cell 2.0±0.05V
Over-discharge release for each cell 3.00±0.05V
Over-discharge release method Charging recovery
5.3 Over current Discharge over current protection 150±50A
Protection delay time 50~150ms
Over current release method Release after cutoff the load.
5.4 Short NO. Ban electrode short circuit
5.5 Battery temperature Charge over temperature Protection @55±5℃
Release @45±5℃
Discharge over temperature Protection @65±5℃
Release @55±5℃
Charge low temperature Protection @0±5℃
Release @10±5℃
Discharge low temperature Protection @-20±5℃
Release @-10±5℃
MOSFET over temperature Protection @100±5℃
Release @90±5℃
5.6 LCD Screen: Short press a switch, light and display screen: voltage temperature residual capacity current, light up after waiting for screen to go out, after 60 s into power saving state (buzzer open state, the buzzer alarm detection background), short press it again to light up the screen.
5.7 Buzz: Buzzer open state: SOC 10% or less, buzzer alarm, long press switch 3 s, buzzer close and screen OFF buzzer hints
Buzzer is turned off, when the SOC 50% or less, need to manually by 3 s starting buzzer long (SOC testing and determine whether the alarm).
Buzzer is turned off, charging when the battery pack is SOC > 50%, the buzzer closed automatic reset, in an open position.

6. Physical map



                           3.6KWh Campervan Leisure 24V 150Ah Lithium Ion Battery Deep Cycle 1

                          3.6KWh Campervan Leisure 24V 150Ah Lithium Ion Battery Deep Cycle 2


7. 4P - Air head Pin definition (main board and display):


                                      Powerful Prismatic Lithium Batteries , 24V 200AH Battery Forklift Truck 2



1. The motherboard socket: Pin1 to 12V+,Pin2 to B, Pin2 to A and Pin4 to GND.

2.The LCD panel socket:Pin1 to 12V+,Pin2 to B, Pin2 to A and Pin4 to GND.

3. Battery iron box matching LCD communication shielding line length is about 1.5 m.


8. Transportation

* Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.

* Battery should be stayed in the warehouse 15℃~35℃ where it’s dry, clean, shade, and well-ventilated.

* The battery should be stored in 50% SOC during transportation. (The suggest method: Charge the battery fully29.2V, and discharge the battery until reaches the discharge cutoff voltage20.0V, then charge the battery up to 50% SOC26.4Vand storage in proper circumstance according specification.)

* The battery need to be charged every 6 months if out of use

* Keep the battery against dropping, turning over and serious stacking during loading.


9. Warning & Tips

Before using the battery, please read and follow the specifications and precautions on the surface of the battery. Improper use may cause heat, fire, rupture, damage, or capacity deterioration of the battery. Shenzhen Guanyu New Energy Technology Co., Ltd. is not responsible for any accidents caused by use, which does not meet our specifications.

² The battery must be far away from heat source, high voltage, and avoid to be exposed in sunshine for long time.

² Never throw the battery into water.

² Do not put the battery in a charger or equipment with wrong terminals connected.

² Never connect the positive and negative of battery with metal.

² Avoid excessive physical shock or vibration. don't hit, fall, stamp on the battery

² Without the permission of the manufacturer and guidance, forbidden to remove or to assemble the battery

² Do not use the battery mixed with other different manufacturer, type, or model batteries.

² Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some function and reduce the life.

² When battery run out of power, please charge your battery timely (≤15day).

² Please use the matched or suggested charger for this battery.

² If battery emit peculiar smell, heating, distortion or appear any abnormity during working or storage, please stop using and take it out from device.

² If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately.

² Please far away from children or pets.

² Do not put disuse battery into a fire or water.

² It is strictly prohibited any series between the battery packs. Any requirements on serials connection, please contact GUANYU for details.


10. Battery operation instruction

10.1 Charge and discharge

10.1.1 Charging current:Do not surpass the largest charging current that specification stipulated.

10.1.2 Charging voltage:Do not surpass the highest limited voltage that specification stipulated.

10.1.3 Charging temperature:within temperature scope that specification stipulated.

10.1.4 Charge with constant current, then with the constant voltage, no reverse charge, which is dangerous

10.1.5 Special note:

Short time doesn't affect the use of the battery overcharge too, but for a long period of time over

discharge or over charge can affect the function of the battery failure, or the battery can't use permanent, appear serious safety hazards, need long time floating please use the recommended floating model specification.Battery when not in use for a long time, because of its own self-discharge characteristics can also cause discharge, to prevent the occurrence of a discharge, battery should maintain a certain capacity, maintain the voltage at 50% state of SOC.


11. Other Chemical Reaction

Because batteries utilize a chemical reaction, battery performance will deteriorate over time even

if stored for a long period of time without being used. In addition, if the various usage conditions

such as charge, discharge, ambient temperature, etc. are not maintained within the specified

ranges, the life expectancy of the battery may be shortened or the device in which the battery is

used may be damaged by electrolyte leakage. If the discharge time is much shorter than the

normal after full charged, even battery is charged correctly, and this may indicate it is time to

change the battery.
