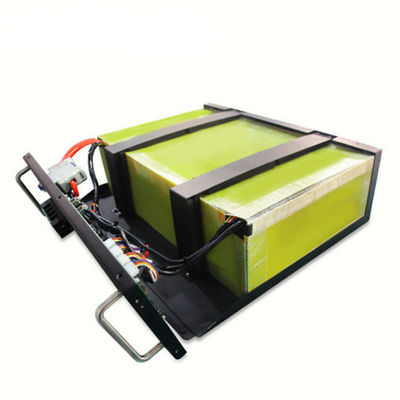

OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application

OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application
OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application

Large Image :  OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application

Product Details:
Place of Origin: China
Brand Name: GUANYU
Certification: CE,UN38.3,MSDS
Model Number: GUANYU-FF-0133
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: standard export carton, pallet
Delivery Time: 2~4weeks for samples; 4~6weeks for mass production
Payment Terms: 30% before production,70% before delivery
Supply Ability: 450Mwh/year
Detailed Product Description
Nominal Voltage:: 48V Typical Capacity:: 50A
Max Discharge Current:: 50A Max Charge Current::: 10A
Working Temperature::: 0℃ - 45℃ Weight::: 20kg
Certification:: CE/UN38.3/MSDS High Light:: Deep Cycle Rv Battery, Lithium Rv Battery
Cycles Life@ 100% DOD::: ≥2000 Dimension::: Customizable
Warranty:: 2Years
Highlight:

51.2V 50Ah Telecom Lithium Ion Battery

,

OEM Telecom Lithium Ion Battery

,

Lithium Ion Battery For Telecom Application

48V lithium iron phosphate battery 51.2V50AH battery pack solar photovoltaic communication power supply UPS

The model battery can be replaced for:





Wind Energy Storage batteries, Motorcycles batteries, cars batteries, buses batteries, trucks batteries, yachts batteries, Launch batteries, ships batteries, racing cars batteries, Tricycles batteries, Pedicab batteries, three wheeler vehicle batteries, Limousine batteries, Telecom Stations batteries, Bank Power supply systems batteries, Solar Energy Storage batteries, Hospital Power Supply system batteries, Home Power System batteries, etc.

Supoort Series And Parallel

1. General information This specification defines the performance of rechargeable lithium iron phosphate battery GUANYU-FF-061 produced by Shenzhen Guanyu New Energy Technology Co., Ltd., and describes the type, performance, technical characteristics, warnings and precautions of the battery pack. The battery pack supports Bluetooth communication. With Android and IOS APP, you can read battery status and information. Especially because of the openness of Android system, different smartphone manufacturers will have their own different Bluetooth hardware versions and customized Android system functions. Therefore, due to compatibility issues, the application may not work properly on some smartphones (using Android). The customer needs to confirm whether the phone is compatible with the application.



2. Specification



NO Items Description
Normal specification
1 Nominal Voltage 48V
2 Normal Capacity 50Ah
3 Internal Resistance ≤20mΩ
Standard Charge
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 58.4±0.1V
6 Recommended float charge voltage(for Standby use) 56±0.1V
7 Allowed MAX charge current 10A@Battery initial Temp 25±5℃
8 Recommended charge current ≤8A
Standard discharge
9 Battery operation temperature range @discharging 0~45℃
10 Output Voltage Range

32~58.4V

11 Allowed discharge current 50A withstand 30min @Battery initial Temp 25±5℃
12 Pulse discharge current 60A withstand 3s
13 Discharge Cut-off voltage 32V
Mechanical Characteristics
14 Dimension customizable
customizable
customizable
15 Weight Approx. 20Kg
Storage
16 Storage Temperature & Humidity Range Short: within one month -20~35℃, 45~75%RH
Long term: above one month -10~30℃, 45~75%RH
17 Self-discharge rate Residual capacity ≤3% per month; ≤15% per year
Reversible capacity ≤1.5%per month; ≤8% per year





3. Electrical Characteristics & Test Condition



Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.



NO Items Criterion Condition
1 Internal Impedance ≤20mΩ Test the internal resistance of 50% SOC battery pack with 1 kHz AC internal resistance test instrument.
2 Capacity ≥50Ah Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 180 minutes, you can stop and define the Discharging current*time value (Ah) as battery capacity.
3



Short circuit protection

Automatically cutoff discharging when short circuit, and release after remove the lead. Connect the positive and negative of this battery pack through a lead with the resistance less than 5mΩ.
4 MAX charge Current 10A Charging with this current for more than 0.5h and the added temperature of battery pack less than 20℃.
5 MAX discharge Current 60A/3s Discharging with this current for more than 0.5h and the added temperature of battery pack less than 35℃.
6





Cycle life (DOD%100)

≥2000cycle Discharge with the current of 0.5C until it can’t discharge, and then rest it for 1h. Charge the battery following CC(0.33C)/CV(14.6V) mode to full capacity, and then rest it for 1h. Repeat above process until full charged capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
7



Discharge Temperature

Characteristics

-20℃ ≥70% At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage. Record the ratio between discharging & charging capacity.
0℃ ≥80%
25℃ 100%
55℃ ≥95%
8 Charge Retention ability remain capacity≥90% Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.








4. Dimensional Drawing







                                     OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application 0

                                    OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application 1




5.Storage & Transportation



* Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.

* Battery should be stayed in the ware house -20℃~35℃ where it’s dry, clean, shade, and well-ventilated.

* The battery should be stored in 50% SOC during transportation.

* The battery need to be charged every 6 months if out of use

* Keep the battery against dropping, turning over and serious stacking during loading.




6. Warning & Tips



Before using the battery, please read and observe the specifications and precautions on the battery surface. Improper use may cause the battery to heat up, catch fire, crack, damage or decrease its capacity. Shenzhen Guanyu New Energy Technology Co., Ltd. is not responsible for any accidents caused by non-compliance













                                               OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application 2

                                          OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application 3

                                               OEM 51.2V 50Ah Telecom Lithium Ion Battery For Telecom Application 4
